Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter

Name: Dry Dial DN400F Woltman Water Meter PN10 Irrigation Multi Jet Water Meter
Brand: Iflow
Price: 1 USD

Buy cheap Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter product

Brand Name : Iflow

Model Number : LXXG150FX

Certification : ISO 4064, GB/T19001

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 2200000 units per year

Delivery Time : 4-6 weeks

Packaging Details : wooden case pluse pallet

Type : Irrigation hydrometer with pulse emitter

Port : DN400F

Connect port : Flange

Pressure rating : PN16 , PN10

Housing Material : ductile iron

Class : Class B

Remote reading : optional pulse emitter

Contact Now

Dry Dial Woltman Water Meter DN300 Multijet Water Meter Vacuum Seal for irrigation hydrometer

Application

Measuring the volume of cold (hot) water passing through the pipeline

Feature:

Removable element structure, easy installation and maintenance
Dry-dial, Magnetic drive;
Large flow capacity, small pressure loss;
Resist water hummer and pollution;
Vacuum sealed register ensures the dial keep free from condensation and keep the reading clear in a long term service;
Selected high quality materials for steady and reliable characteristic;
Technical data conform to international standard ISO 4064.

Working condition

Water temperature: 0.1℃～40℃ (0.1℃～90℃ for hot water meter)
Water pressure: ≤1.0Mpa (1.6MPa on request)

Maximum permissible errors

in the lower zone from qmin inclusive up to but excluding qt is ±5%
in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)

MAIN TECHNICAL SPECIFICATIONS

Type	Size(mm)	Class	qsOverloadFlow	qpPermanentFlow	qtTransitional Flow	qminMin.Flow	Min. Reading	Max. Reading
Type	Size(mm)	Class	m3/h				m3
LXXG-50	50	A	30	15	4.5	1.2	0.0002	999,999
LXXG-65	65	A	50	25	7.5	2.0	0.002	999,999
LXXG-80	80	A	80	40	12	3.2	0.002	999,999
LXXG-100	100	A	120	60	18	4.8	0.002	999,999
LXXG-125	125	A	200	100	30	8	0.002	999,999
LXXG-150	150	A	300	150	45	12	0.002	999,999
LXXG-200	200	A	500	250	75	20	0.002	999,999
LXXG-250	250	A	800	400	120	32	0.02	9,999,999
LXXG-300	300	A	1200	600	180	48	0.02	9,999,999

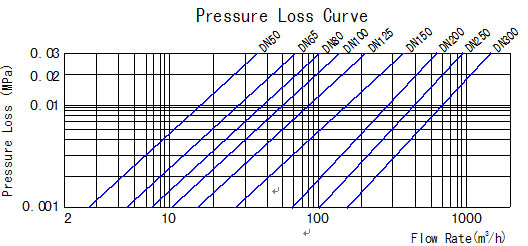

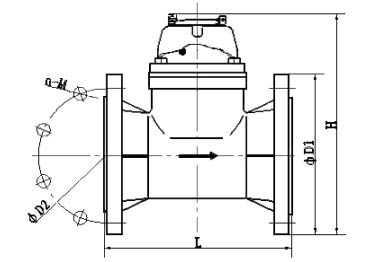

DIMENSIONS

Type	Size		L Length		H Height	Connecting flange
						φD1Outside diameter	φD2Bolt circle diameter	ConnectingBolts (n-M)
	mm
LXXG-50	50	200		253		165	125	4-M16
LXXG-65	65	200		268		185	145	4-M16
LXXG-80	80	225		284		200	160	8-M16
LXXG-100	100	250		295		220	180	8-M16
LXXG-125	125	250		310		250	210	8-M16
LXXG-150	150	300		339		285	240	8-M20
LXXG-200	200	350		382		340	295	8-M20(1.0MPa)
								12-M20(1.6MPa)
LXXG-250	250	400		433		395	350	12-M20(1.0MPa)
		450		438		405	355	12-M24(1.6MPa)
LXXG-300	300	450		483		445	400	12-M20(1.0MPa)
		500		488		460	410	12-M24(1.6MPa)

Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter

NOTE: The flange dimension conforms to ISO7005-2:1988 standard. Order for products of special requirements is also accepted.

Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter

LXXG-50～300 HORIZONTAL VANE WHEEL, DRY-DIAL COLD WATER METER

Code	Description	Material	QTY
1	Screw M5×45 For Sealing	Stainless Steel	1
2	Screw M5×45	Stainless Steel	1
3	Cover With Lid	Assembly	1
4	Sealed Register	Assembly	1
5	Fixing pin	Brass	1
6	Retainer Ring	ABS	1
7	Screw	Brass	4
8	Pin	Stainless Steel	1
9	Support	ABS	1
10	Bolt For Sealing	Stainless Steel	2
11	Bolt M12×35	Stainless Steel	2
12	Gasket	Stainless Steel	4
13	Adjusting Nut	Brass	1
14	Flange Plate	Cast Iron	1
15	O-ring	Silicon Rubber	1
16	O-ring	Silicon Rubber	1
17	Bush For Adjustment	Brass	1
18	Upper Bearing Plate	Brass	1
19	Screw	Brass	4
20	Lower Central Gear	Component	1
21	Cover Plate	MPPO	1
22	O-ring For Adjustment	Rubber	2
23	Transmission Gear Component	Assembly	1
24	Adjusting Lever	Brass	1
25	Turbine	Component	1
26	Adjusting Plate	MPPO	1
27	Bush with Agate	Nylon with Graphite	1
28	Measuring Chamber	MPPO	1
29	Fixing Screw	Brass	3
30	O-ring	Rubber	1
31	Body	Cast Iron	1

Competitive Advantage:

Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
Strict process control
Advanced calibration equipment
Engineer team

Production line

Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter

Base water meter

Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter
